Quickstart

Importing Python dependencies

For this software to run user must import in Python the following packages:

import os
import numpy as np
import rasterio
from cropmaps.sts import sentimeseries
from cropmaps.get_creodias import get_data, check_L2, eodata_path_creator

User required information

User must define for the software:

  • A path to an area of interest (AOI) must be defined by the user for the software to be able to search for data in a specific region. The path must be provided in Python as a str.

  • ESA-Scihub credentials are required in order to perform requests to ESA while searching for data. If you do not have you can create an account here. ESA-Scihub credentials must be provided in Python as a str.

  • At last, a search/work time slot must be provided by the user. The date format is YYYYMMDD and provided in Python as a str.

For all the above see the following Python lines:

AOI = "/home/eouser/uth/Cap_Bon/AOI/AOI.geojson"
user = "mago.creodias"
password = "TESTing.11"
start_date = "20210910"
end_date = "20220910"

Get data

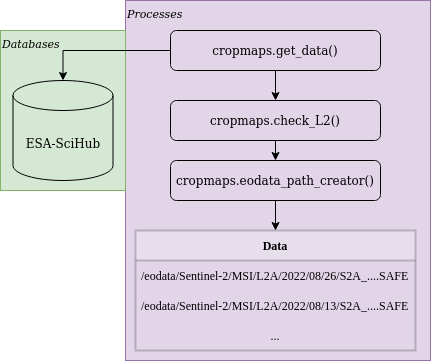

The first step in order to find all the available Sentinel-2 data is to use the above variables (user, password, start_date, end_date) to get as a Pandas DataFrame all the Sentinel-2 catalog. In the example bellow only two query variables are used, producttype set to S2MSI2A and cloudcoverpercentance is set to 0-5% ("[0 TO 5]").

πŸ“ User can define more variables for a more specific query. These variables can be found here.

_images/ESA_query.drawio.png

Then the result from query is being tested using cropmaps.get_creodias.check_L2() method since the resulted Sentinel-2 data must be in atmospherically corrected L2A. The last step of the following chunk is to use the cropmaps.get_creodias.eodata_path_creator() method for getting the respective data paths in CreoDIAS.

data = get_data(AOI, start_date, end_date, user, password, producttype = "S2MSI2A", cloudcoverpercentage = "[0 TO 5]")
data = check_L2(data)
creodias_paths = eodata_path_creator(data)

Create CreoDIAS local storage structure

All the available data in CreoDIAS are stored in /eodata folder. Users do not have editing/writing permissions in that specific folder. So the user have to use the following lines of code to create a local folder to store the results of the procedure that will follow. Note that the original data will not be copied in user’s local folder but only new products such as NDVI, or masked images will only be saved there.

# Reproducing a DIAS enviroment where we can not write inside the data folder from the moment we have the data
# This step is required because there are no permissions to write inside the /eodata DIAS folder
products_path = "/home/eouser/uth/eodata_local"
if not os.path.exists(products_path):
    os.makedirs(products_path)

To get the data in Python the user has to use cropmaps.sts.sentimeseries.find_DIAS() method and the creodias_paths variable from the above steps. Method cropmaps.sts.sentimeseries.find_DIAS() is part of cropmaps.sts.sentimeseries() class which is responsible to collect, process and analyze Sentinel-2 timeseries data.

# Create a timeseries with all the available data from query
eodata = sentimeseries("S2-timeseries")
eodata.find_DIAS(creodias_paths)

Keep data with specific relative orbit

Using the same instance of sentimeseries object named above as eodata the user can sort and remove data using date and a relative orbit using the following chuck of code. In this specific example the user sorts the data using date and then keeps only the data with relative orbit 122.

# Keep only images with specific orbit 122
# Over the region of interest there are two available orbits the the one contains missing data
eodata.sort_images(date=True)
unique_orbits = list(set(eodata.orbits))
print(f"Orbits: {unique_orbits}")
unique_orbits.remove("122")
to_be_removed = unique_orbits
for orbit in to_be_removed:
    eodata.remove_orbit(orbit)

Masking data using AOI file

In this example the region of interest is a cover a smaller geographical region than the available Sentinel-2 data. To save disk space and computational time, raw data must be masked to the geographical cover of the AOI. Also, it is important to have all the raster data in the same spatial resolution and for that in the example bellow the highest possible resolution of 10 meters for Sentinel-2 was selected.

Band

Resolution (m)

Resize

Final Resolution

02

10

False

10

03

10

False

10

04

10

False

10

05

20

True

10

06

20

True

10

07

20

True

10

08

10

False

10

8A

20

True

10

11

20

True

10

12

20

True

10

Table 1: Bands with their respective raw spatial resolution and the final spatial resolution

# Mask the data and resize them to 10m resolution to match the highest possible resolution
eodata.clipbyMask(shapefile = AOI, store = products_path) # Raw Clipping
eodata.clipbyMask(shapefile = AOI, store = products_path, resize = True) # Resize 20m to 10m

# If you want to perform the analysis on less bands just add the band name to the band argument
# as in here: eodata.clipbyMask(shapefile = mask, store = products_path, band = "B05", resize = True)

Calculate Vegetation and RS Indices

For the crop type mapping with remote sensing data is important the use of vegetation/RS indices. Currently, the software supports the calculation of 3 indices: NDVI, NDWI and NDBI. NDVI and NDWI raw spatial resolutions are 10 meters, while NDBI’s raw spatial resolution is 20 meters. In NDBI’s case upsampling procedure must be performed to match the required spatial resolution of 10 meters.

# Calculate vegetation indexes
eodata.getVI("NDVI", store = products_path, subregion = "AOI") # Subregion is the name of the mask shapefile
eodata.getVI("NDWI", store = products_path, subregion = "AOI")
eodata.getVI("NDBI", store = products_path, subregion = "AOI")

# Do the same for the vegetation indexes
# NOTE: CLIPPED DATA BY DEFAULT ARE SAVED AS AN ATTRIBUTE OF THE S2IMAGE OBJECT AS image.BAND[RESOLUTION][MASK_NAME]
# SO IN THIS CASE TO ACCESS THE ATTRIBUTE OF IMAGE 0, BAND B12 YOU CAN write: eodata.data[0].B12["10"]["AOI"]
eodata.upsample(store = products_path, band = "NDBI", subregion = "AOI")

Training/Predicting ML-model for crop type mapping using Sentinel-2 timeseries data

Importing required Python packages

from cropmaps.cube import generate_cube_paths, make_cube
from cropmaps.models import random_forest_train, random_forest_predict, save_model, LandCover_Masking
from cropmaps.prepare_vector import burn

Creating hypercube for training

The first step for making the training hypercube is the selection of bands to be included. Note that all the available dates of the eodata (cropmaps.sts.sentimeseries() object) will be used. Then the use of cropmaps.cube.generate_cube_paths() method is used to provide all the data paths of the images to be stacked. At last the user must provide a hypercube name and call the cropmaps.cube.make_cube() method to create and save the hypercube.

Prepare Ground Truth (GT) data for training/testing

For the training/testing of the model GT data must be used. The raw format of the GT data must be in ESRI Shapefile. Any valid Coordinates Reference System (CRS) can be used on that data. User must provide a shapefile variable with the path to the data and the respective class column. The data then must be converted from vector to raster. For that, user must provide metadata, such as CRS, transform, pixel size etc as a Python dict. These type of information can be extracted by copying the metadata information of any NDVI image as in the example bellow.

Important

⚠️ The spatial resolution of the GT raster must be the same with the spatial resolution of the hypercube.

The last step is the usage of cropmaps.models.burn() method to write the GT data as an image with the same metadata as the cube.

# Prepare training ground truth data
shapefile = "/home/eouser/uth/Cap_Bon/Ground_Truth/GT_data_selected_balanced.shp" # Shapefile of the vector training data
classes = "Crop" # Name of the column with the crops
base_path = eodata.data[0].NDVI["10"]["AOI"] # Path of a base image to burn
metadata = rasterio.open(base_path).meta.copy() # Copy metadata dictionary to save the image using the same CRS, transform, shape etc
gt_data_raster = burn(shapefile, classes, metadata) # Save the ground truth data as raster

Training ML-model

For the training of the model cropmaps.models.random_forest_train() method is being used by providing the hypercube path, the GT raster data path and a path to store the results. By default the 70% of the available GT data is used for the training of the model and 30% for testing. Also the user can save the model as in the example bellow using the cropmaps.models.save_model() method.

# Train the model using the cube and the burned raster image with the ground truth data
model = random_forest_train(cube_path = cube_path,
    gt_fpath = gt_data_raster,
    results_to = "/home/eouser/uth/Cap_Bon/")

saved_model = save_model(model, spath = "/home/eouser/uth/Cap_Bon/") # Save model to disk

Classification with the ML-model

The final step, is the usage of the model to classify the hypercube in the AOI. For this the cropmaps.models.random_forest_predict() method is being used. Also since only crops are required, ESA-CCI Landcover external product is being used to mask generated product where non-vegetation categories exist.

classified = random_forest_predict(cube_path = cube_path, model = model, results_to = "/home/eouser/uth/Cap_Bon/") # Use the model to predict over the cube
landcover_data = "/home/eouser/uth/Cap_Bon/LandCover" # Path to store LandCover data
landcover_image = eodata.LandCover(store = landcover_data) # Download ESA worldcover data

classified = LandCover_Masking(landcover_image, classified, results_to = "/home/eouser/uth/Cap_Bon/") # Mask the result using the third party LandCover product
